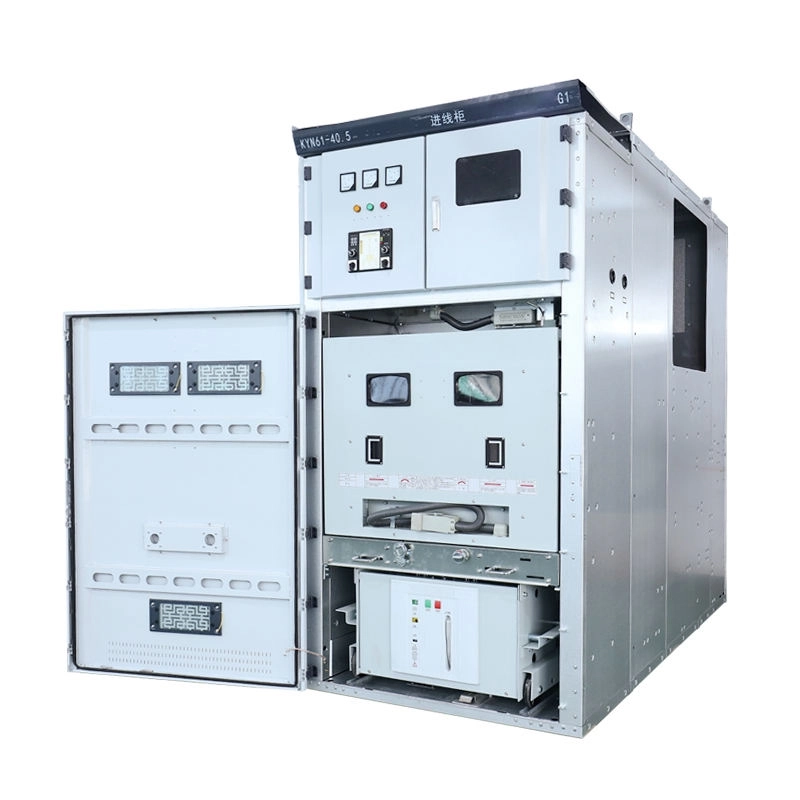

Ⅰ.Feature Introduction
1. Standardized Modules: 25mm modular design allows highly flexible combination of functional units.
2.Withdrawable Structure: All functional units can be directly withdrawn for convenient and efficient maintenance.
3.Compartmentalized Isolation: Horizontal busbar compartment, functional unit compartment, and cable compartment are completely isolated, protection degree up to IP54.
4.Five-Protection Interlocking: Comprehensive mechanical and electrical interlocking ensures operational safety.
5.Grounding System: Independent PE and N grounding systems.
6.Arc Protection: Passed internal arc fault test (IAC AFLR).
Ⅱ.Product Advantages
1. Fully Isolated Design: Each functional unit is completely independent and does not affect others.
2.High Protection Degree: Internal compartment protection degree reaches IP54, ensuring operational safety.
3.High-Quality Components: Uses internationally renowned brand components for stable and reliable performance.
4.Drawer-Type Design: All functional units can be directly withdrawn, allowing maintenance without power outage.
5.Intelligent Monitoring: Real-time monitoring of operating status, early warning of potential faults.
6.Clear Labeling: Clear identification for each unit with detailed operation instructions.
Ⅰ.Overall Frame Design
1. Cabinet Structure:
①Material: High-quality cold-rolled steel plate (thickness ≥ 2.0mm) or aluminum-zinc alloy, surface treated with degreasing, phosphating, and electrostatic spraying, corrosion-resistant and wear-resistant.
②Protection Degree: Standard IP40 (indoor), optional IP54 (dust and water protection), internal compartments independently separated, protection up to IP30.
③Installation Method: Fixed or withdrawable (can be installed front/rear), supports against-wall or away-from-wall placement, saving space.
2. Functional Zoning:
①Busbar Compartment: Top horizontal busbar + vertical busbar, fully insulated protection, supports high current transmission (≤6300A).
②Drawer Unit Compartment: Modular drawers (1E/2E/4E/8E), flexible configuration for feeder, motor control, capacitor compensation, etc.
③Cable Compartment: Large bottom space for wiring, supports top or bottom cable entry, standardized cable clamps.
Ⅱ.Core Component Structure
1.Drawer Unit System
①Guide rail guidance + roller assistance for smooth insertion/extraction; Crank handle operating mechanism for “Connected/Test/Disconnected” position switching.
②Mechanical interlocking device prevents insertion/extraction under load (complies with IEC 60947 standard).
③Main contacts silver-plated, low contact resistance, withstands current impact.
④Secondary plugs use anti-misinsertion design to ensure reliable control
circuit connection.
⑤Horizontal Busbar: TMY copper bar, tin-plated surface, rated current ≤ 6300A, segmented insulated wrapping.
⑥Vertical Busbar: Modular plug-in design, supports future expansion, rated current ≤ 1600A.
2.Safety Protection Structure
①Metal partitions between compartments, directional arc energy pressure relief during faults (top pressure relief channel).
②Independent PE grounding bar, multiple grounding points throughout the cabinet, grounding resistance ≤ 0.1Ω.
| Item | Technical Parameter |
|---|---|
| Rated Voltage | AC 380V / 660V |
| Rated Insulation Voltage | 1000V |
| Rated Frequency | 50/60Hz |
| Main Busbar Rated Current | 630A~6300A (Note: Corrected range based on Section 2) |
| Vertical Busbar Rated Current | 1600A (Note: Corrected based on Section 2) |
| Rated Short-Time Withstand Current (Icw) | 50kA (1s) |
| Rated Peak Withstand Current (Ipk) | 105kA |
| Protection Degree (IP) | IP30, IP40 |
