Vertical conveyor for AMR and Pallet

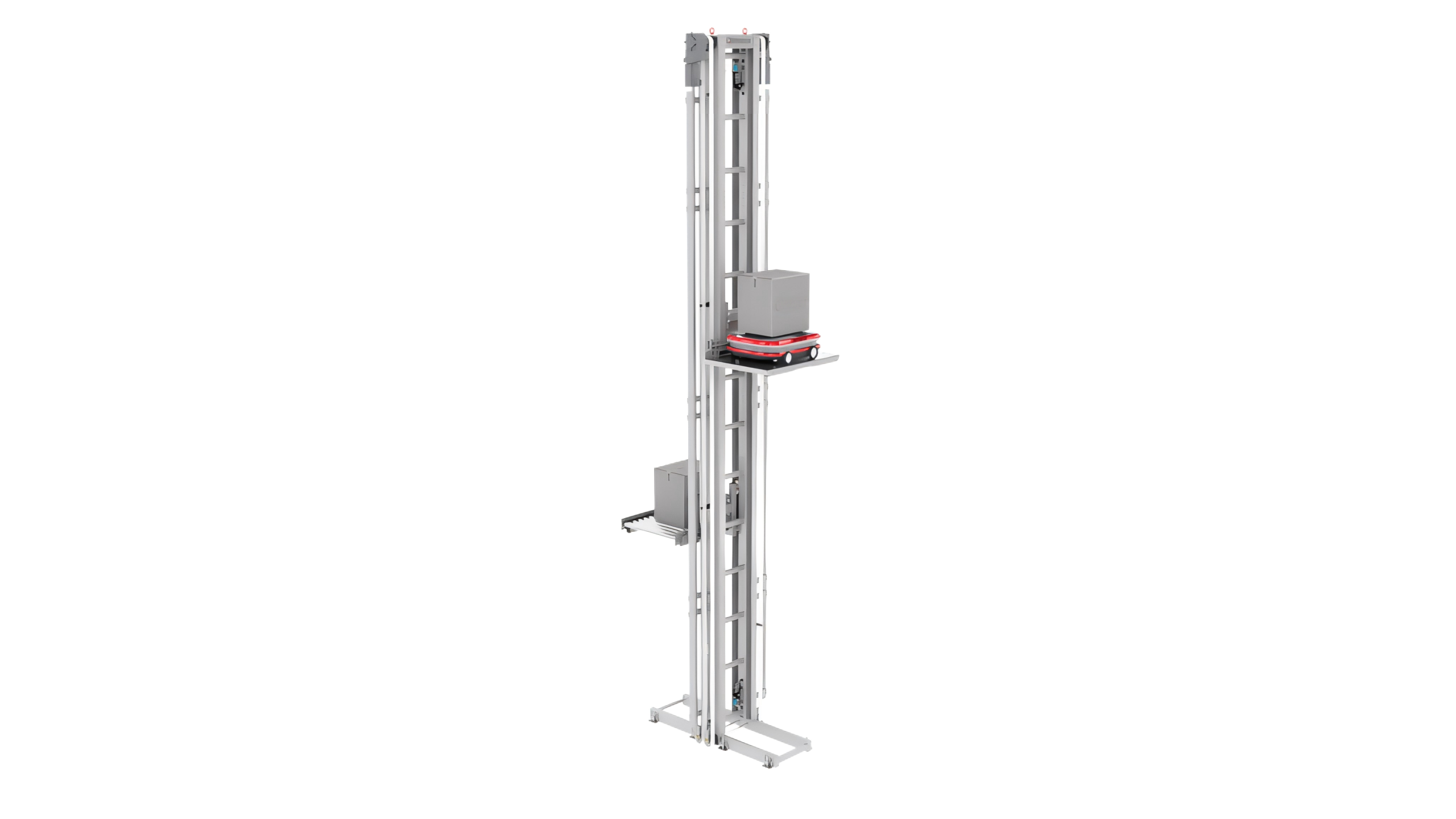

This vertical conveyor is a high-precision, high-rigidity discontinuous vertical conveying system with a compact structure and small footprint—an ideal solution for transporting Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs). With strong vertical transport capability, it is especially suited for intelligent logistics systems requiring flexible operation between different floors.
To find out more talk to our team
Specification
Load: Suit your requirements
Platform size: Suit your requirements
4-8 weeks from order to install
Contact a dedicated salesperson for a quote
Enquire hereFeatures
🔹Designed for Lightweight Equipment and Materials: Specially developed for transporting AMRs, AGVs, and lightweight boxes or pallets, meeting the needs of high-frequency, light-load operations.
🔹Compact Structure with Minimal Footprint: Single-column design significantly saves floor space—ideal for space-constrained facilities and multi-floor production environments.
🔹Multi-Level Transport with Flexible Layouts: Enables automated vertical transfers between floors, allowing seamless AGV/AMR operation across multiple levels.
🔹Optional Dual Platforms with Flexible Transfer Methods: Configurable with one or two independent platforms, each customizable with roller conveyors, belt conveyors, or purpose-built decks for various applications.
Enquire here
Options & Accessories
🔹The vertical conveyor can be configured with one or two independently driven platforms. Each platform can be customized as a roller conveyor, a dedicated AGV/AMR transfer deck, or a product pallet, depending on application needs. Equipped with a servo-driven system, the unit offers excellent positioning accuracy and can be seamlessly integrated into complex, dynamic automation environments. Designed with modern factory space optimization in mind, this system significantly reduces floor space usage while enabling multi-floor AGV or AMR operation. It enhances both flexibility and automation in intralogistics, making it a key asset in advancing smart manufacturing capabilities.
🔹The platform size, load capacity, and lifting height can be tailored according to the specific use case to ensure optimal compatibility. Additionally, the equipment allows for entry and exit in different directions and offers various forms of conveyor systems, providing flexibility to adapt to different material transportation modes, thereby enhancing operational efficiency.
Enquire hereThe Material Handling Equipments in your industry
The Reach 25 goods lifts can be used to carry pallet loads of finished products or ingredients, or equipment, up and down from a mezzanine floor or second floor. The lift’s platform can be manufactured in stainless steel so it complies with regulations, is non-corrosive and can be washed.
With musculoskeletal injuries in mind, the following is a useful, but not exhaustive, list of situations that commonly arise in the manufacturing and engineering sectors during the production process:
• Repeated manipulation of the load at a distance from the trunk of the body.
• Repeated bending of the trunk to lift the load.
• A very large load that is difficult to grasp.
• Repeated handling of the load above shoulder height or at floor level.
• Lifting that involves twisting of the trunk.
• The load needs to be carried over a long distance through a cluttered or hazardous area.
When manual handling activities involve such risks of injury (particularly to the back) due to unfavourable ergonomic conditions, the basic principle is that the employer must take measures to reduce or eliminate the risk of injury.
The Reach 25 goods lift is designed specifically to transport standard sized pallets from manufacturing, to and from storage on a mezzanine or first floor. If a standard specification doesn’t tick all your boxes, we also specialise in bespoke configurations, working collaboratively with you to ensure your end solution is perfect for your company, employees and products.
