Specification
Load: 1815 kg
Platform size: 1.2 x 3 m
Drive type: Hydraulic
Travel: 6.35 m
4-8 weeks from order to install
Contact a dedicated salesperson for a quote
Enquire hereFeatures

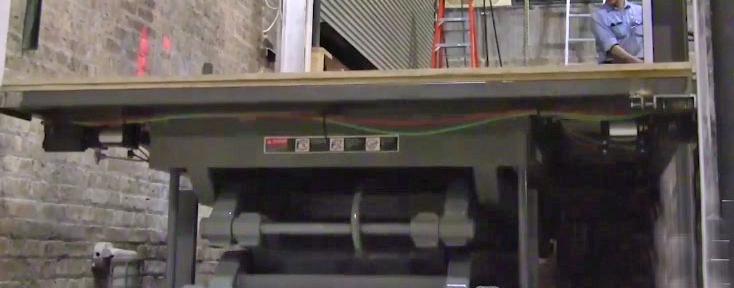

🔹By understanding the on-site requirements, we provide customized solutions. The lift consists of three vertically stacked scissors, which are directly secured together using standard hydraulic cylinders, ensuring stability and simultaneous lifting. This lifting equipment is custom-manufactured to specifications, with a maximum load capacity of 1,815 kg and a maximum travel of 6.35 meters. The platform dimensions are 1.2 x 3 meters to accommodate pillar widths. A high-flow power unit is provided, capable of raising the lifting height to 6.35 meters within 20 seconds. The lift also includes soft start/stop functionality, ensuring no jarring of the load as it begins to rise or descend.
🔹Power unit: 40HP, 95 liters per minute, it will move stage props to stage height within 20 seconds, with special hydraulic control valves for soft start/stop.
Enquire here
Options & Accessories
🔹This type of lift platform can be customized according to specific production requirements. Whether it’s the platform size, load capacity, lifting height, control method, or safety features, it can be optimized based on the customer’s specific needs to ensure the equipment perfectly matches the on-site environment.
Enquire hereThe Material Handling Equipments in your industry
The Reach 25 goods lifts can be used to carry pallet loads of finished products or ingredients, or equipment, up and down from a mezzanine floor or second floor. The lift’s platform can be manufactured in stainless steel so it complies with regulations, is non-corrosive and can be washed.
With musculoskeletal injuries in mind, the following is a useful, but not exhaustive, list of situations that commonly arise in the manufacturing and engineering sectors during the production process:
• Repeated manipulation of the load at a distance from the trunk of the body.
• Repeated bending of the trunk to lift the load.
• A very large load that is difficult to grasp.
• Repeated handling of the load above shoulder height or at floor level.
• Lifting that involves twisting of the trunk.
• The load needs to be carried over a long distance through a cluttered or hazardous area.
When manual handling activities involve such risks of injury (particularly to the back) due to unfavourable ergonomic conditions, the basic principle is that the employer must take measures to reduce or eliminate the risk of injury.
The Reach 25 goods lift is designed specifically to transport standard sized pallets from manufacturing, to and from storage on a mezzanine or first floor. If a standard specification doesn’t tick all your boxes, we also specialise in bespoke configurations, working collaboratively with you to ensure your end solution is perfect for your company, employees and products.
