Rotating vertical conveyor

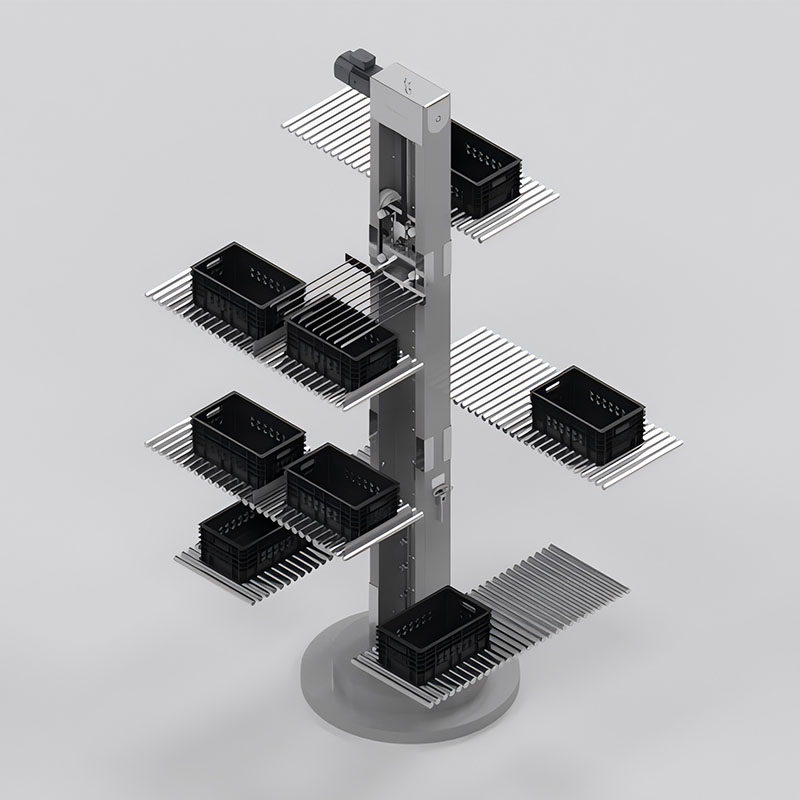

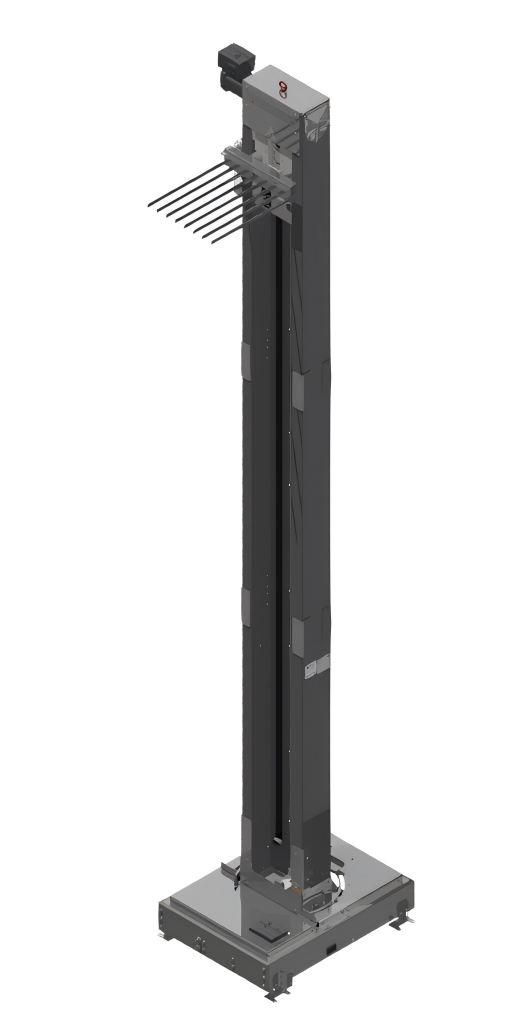

This rotating vertical conveyor is a development-stage system that combines vertical lifting and rotational functions, offering exceptional flexibility for complex conveying layouts. Mounted on a rotatable base, the elevator can pick up and place products at ±90° or 180° angles, enabling seamless integration with multiple infeed and outfeed points. It is ideal for applications such as vertical sorting, buffer lines between floors, or multi-directional switching conveyors.
To find out more talk to our team
Specification
Load: Suit your requirements
Platform size: Suit your requirements
4-8 weeks from order to install
Contact a dedicated salesperson for a quote
Enquire hereFeatures
🔹Rotating Base for Flexible Conveying Angles:Enables ±90° or 180° rotation for picking and placing items, supporting multi-directional material flows and enhancing layout adaptability.
🔹Supports Multi-Point Infeed/Outfeed and Sorting: Can function as a vertical sorter or a multi-channel buffer system to accommodate complex conveying requirements.
🔹Compact Design with Minimal Footprint: Space-saving structure is ideal for areas with limited floor space, maximizing usage of production or storage areas.
🔹Compatible with Diverse Conveyor Layouts: Easily interfaces with conveyor systems in various directions, optimizing the overall layout of production lines or logistics paths.
Enquire here
Options & Accessories
🔹Thanks to its compact structure and small footprint, this elevator is especially suitable for space-constrained environments that require flexible and dynamic conveying paths. It significantly improves material handling efficiency while minimizing the space and cost associated with additional conveyor lines, making it an ideal choice for modern factories and logistics centers seeking high-efficiency, multi-directional conveying solutions.
🔹The platform size, load capacity, and lifting height can be tailored according to the specific use case to ensure optimal compatibility. Additionally, the equipment allows for entry and exit in different directions and offers various forms of conveyor systems, providing flexibility to adapt to different material transportation modes, thereby enhancing operational efficiency.
Enquire hereThe Material Handling Equipments in your industry
The Reach 25 goods lifts can be used to carry pallet loads of finished products or ingredients, or equipment, up and down from a mezzanine floor or second floor. The lift’s platform can be manufactured in stainless steel so it complies with regulations, is non-corrosive and can be washed.
With musculoskeletal injuries in mind, the following is a useful, but not exhaustive, list of situations that commonly arise in the manufacturing and engineering sectors during the production process:
• Repeated manipulation of the load at a distance from the trunk of the body.
• Repeated bending of the trunk to lift the load.
• A very large load that is difficult to grasp.
• Repeated handling of the load above shoulder height or at floor level.
• Lifting that involves twisting of the trunk.
• The load needs to be carried over a long distance through a cluttered or hazardous area.
When manual handling activities involve such risks of injury (particularly to the back) due to unfavourable ergonomic conditions, the basic principle is that the employer must take measures to reduce or eliminate the risk of injury.
The Reach 25 goods lift is designed specifically to transport standard sized pallets from manufacturing, to and from storage on a mezzanine or first floor. If a standard specification doesn’t tick all your boxes, we also specialise in bespoke configurations, working collaboratively with you to ensure your end solution is perfect for your company, employees and products.
